Disabling Opel / Vauxhall Z16XE EGR Valve

EGR Valve - Exhaust Gas Recirculation Valve.

The EGR valve allows your vehicle to more effectively and completely burn up fuel mixture by recirculating a part of the exhaust and running it over the combustion process once more. The EGR valve regulates a smaller passageway amongst the intake and exhaust manifolds. Once the valve opens, intake vacuum takes in exhaust via the valve. This leads to a cooler, considerably more complete burn of the gasoline which reduces you car's dangerous emissions by prohibiting the formation of certain harmful gases.

Z16XE EGR valve


A duff EGR valve is quite expensive to replace, so many individuals wisely choose to eliminate the valve completely. The EGR cheater - emulator you will see here has been made for one goal, just to save you cash in case you must use money for something more important.

Z16XE EGR valve position


First thing you need to do is to obtain EGR blanking plate. You can buy it from a dealer, or you can make it yourself since it is not hard thing to do after all.

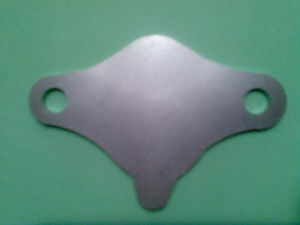

Z16XE blanking plate

Next thing to do is to remove your faulty EGR valve, position a blanking plate (picture above), and start assembling a quite simple circuit to trick the ECU into thinking that the EGR valve is working as it should.

How to make a EGR cheater - emulator in next post.
